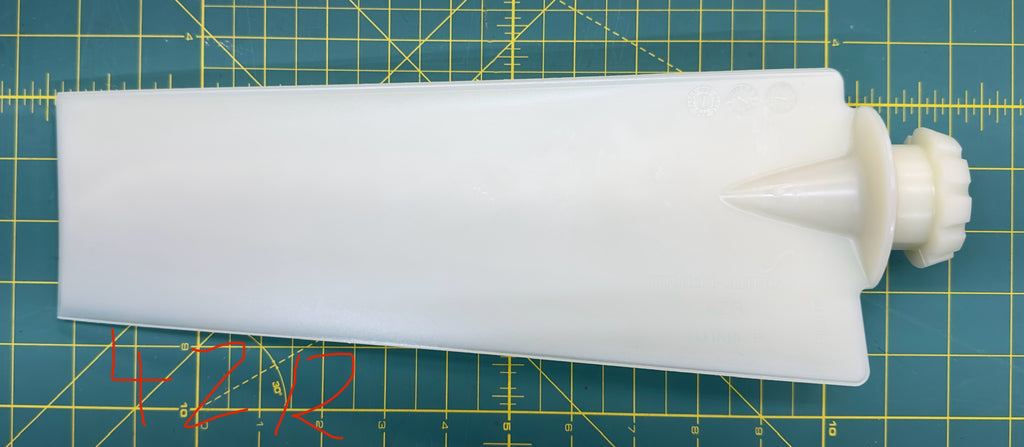

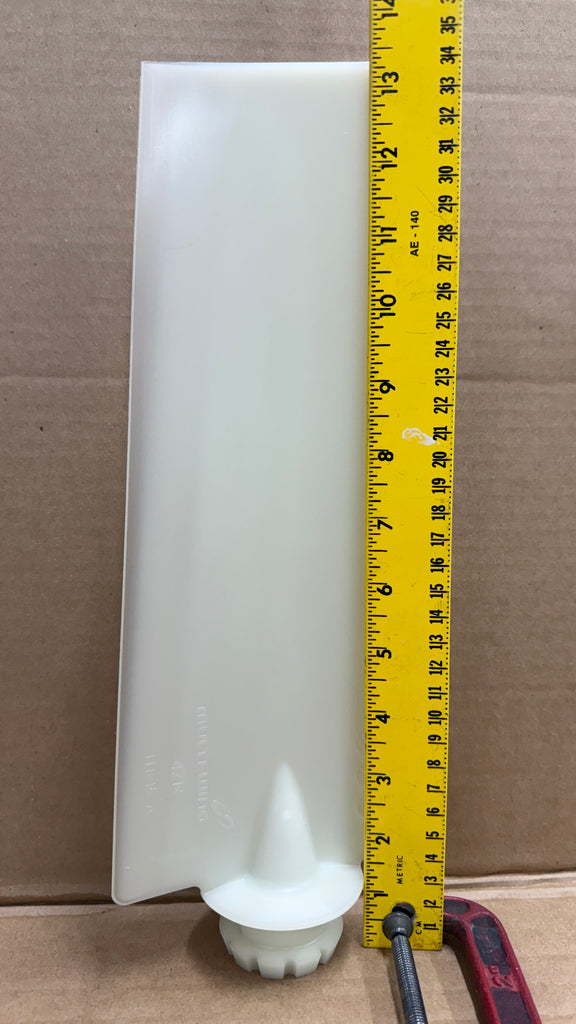

Uncut blade, as molded full length of Multiwing 4ZR PAG (glass filled nylon) blade. Includes pitch pin. 4.6' wide at root.
Shipping; Need it tomorrow? Select next day, orders before 11:00 am PST go the same day. We can also deliver on Saturday, but you need to call. After 11am call if you need same day. Questions: call
This type of blade is used on the many industrial applications, like Caterpillar engine cooling fans. Look on your blade to see if you can find the type imprinted, 4ZR, 4ZL, 5ZL, 5ZR, P4ZR, P4ZL, P5ZR or P5ZL. These blades are not cut to length, however most blades in use are. They can be trimmed to diameter by the user or Amphibious Marine, then the fan balanced for your application or repair. In order for Amphibious Marine to cut these we need to know the hub being used and the diameter of the finish fan. 9 blade hub? 16 blade hub? Alternativly you can look at these photos and text your pictures. Send us all the details so we can help.
These are glass filled nylon blades(PAG) that are functionaly identical to the Wingfan P4ZR blades, uncut. They will fit in the same hub that Z series blades mount in. They may not be the same weight, so don't mix and match on the same fan.
Left hand or Right hand? When you look at the cut end of the blade the leading edge is to the left for LH and point right for a RH.
We track the inventory for accurate ordering on these items. Minimum 2
We are dealers for Multiwing and Wingfan fans and blades. We specialize in same day rapid repairs and shipment of fan and blades. Do you have broken blades and need them quick? We can ship same day overnight. While the store doesn't currently show Saturday delivery options, it is possible in some cases, but needs to be done manually. Call if you have questions. Most fan blades are cut when assembled to the hub at the factory. Therefore blades can be any length regardless of the printed numbers on the blade. It is best to tell us what diameter the fan is, or measure as shown here. We would need to know what hub type if you give a diameter, 5,6, 9,12 or 16?
Fan identification guide & FAQ.
Identification: Follow these steps to identify your current fan:
Step 1: Determine your diameter (there are three methods to determine the diameter)
On a fan with an even number of blades measure straight across from tip to tip.

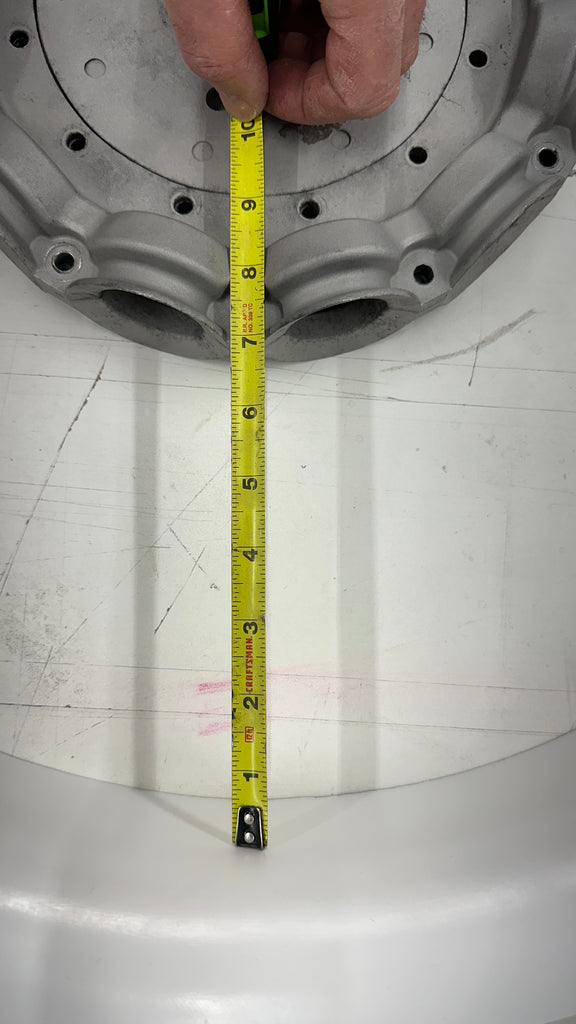

For fans with either an even or odd number of blades, measure from the blade tip to the center of the hub and multiply by 2.

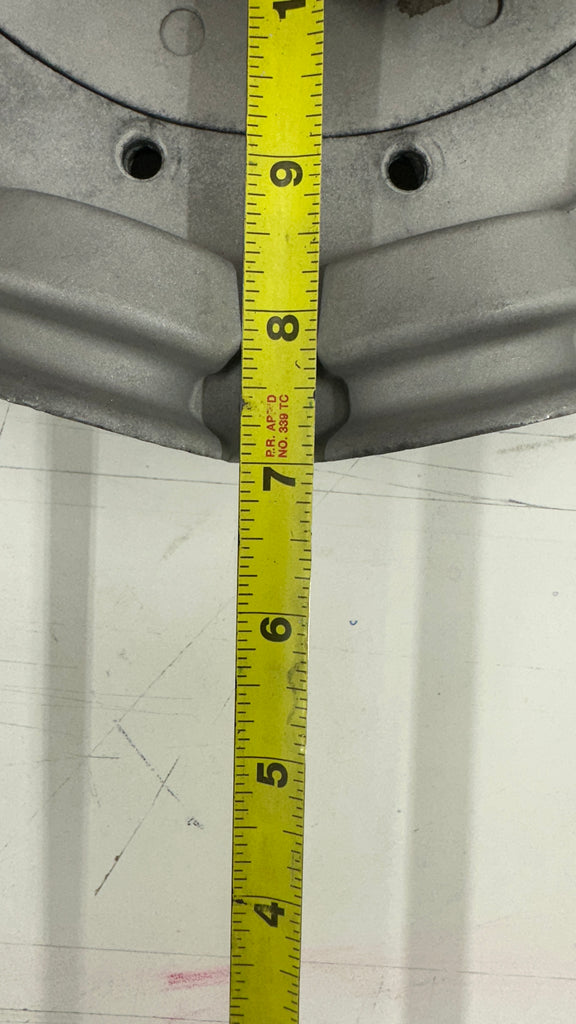

For all fans, measure the diameter of the hub. Measure the length of one blade from tip to base (just above the root, where the blade meets the hub). Add the hub diameter measurement and twice the blade length to determine the fan diameter.
Note: If there are no blades left to measure, then measure the shroud and subtract a suitable clearance distance.
Step 2: Count the number of blades
Step 3: How many blades can the hub hold?
Step 4: Determining the type or series of blades

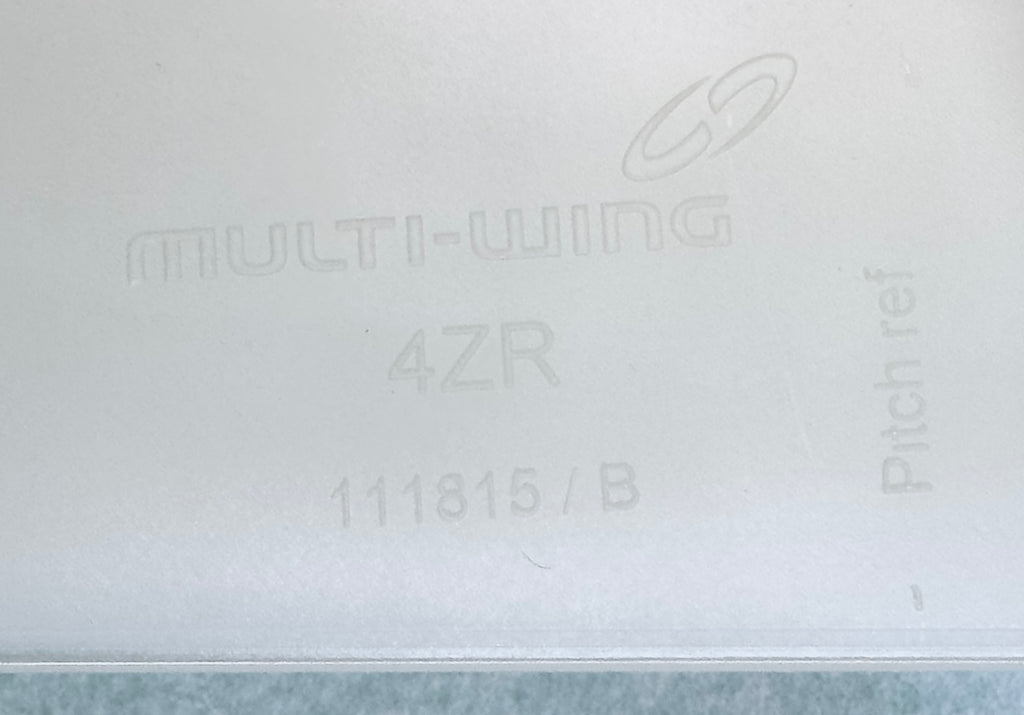

Depending on the blade series, the blade name may or may not be imprinted on the blade. Look for something like 4ZR or 6WL. 4 is the type, Z is the hub style series and R is for Right hand rotation, L left.
Step 5: Determining the pitch angle of the blades
Pitch Angle. Depending on the blade series, the pitch angle may be found imprinted on the blade in a variety of locations, like H series. On Z and W this is set by the pitch pin type or location inside the hub.
Step 6: Determining what material your blades are made of.
Blade Material. Determine what material the fan blades are made of by checking the molded dial located near the base of the blade. Common ones are PAG or PPG.
Step 7: Determine how the fan is mounted.
Mounting Options.
Straight bore, often with set screws and key way
Flange mount, pilot hole and bolt circle, measure hole(better yet boss on machine) precisely with calipers and bolt circle diameter and hole size. Example: 3.000 bore with ½” holes on 5.5” BCD.
Bushing type. If so, examine the bushing for type and shaft diameter markings. Example, P1 1 ⅛” or SH ⅝”. Next, determine the boss/bushing location as described in the bushing orientation ID photo. AS/BS? AR/BR?
F.A.Q. (Frequently Asked Questions)
Can I get spare blades?
Of course.
Is there a model number on my fan?
Look at the fan hub to find a white adhesive ID tag, some start with ASM, others the diameter. If the tag missing, not to worry, if you need help with the above steps just give us a call and we can help.
Why do your blades for sale look longer than mine?

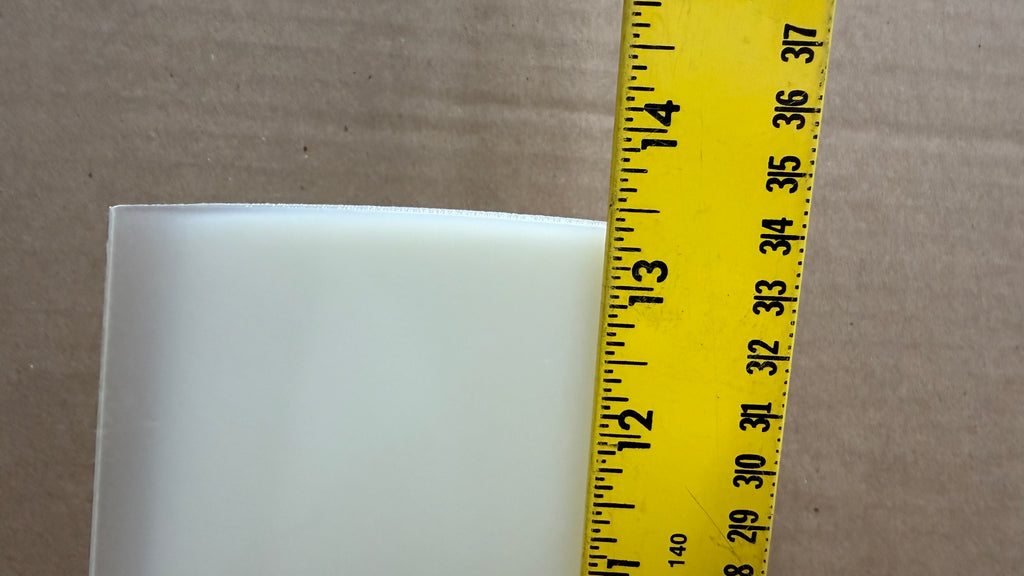

We buy blades uncut directly from the manufacturer. Most blades are cut after molding to make a fan to the OEM specifications. We can trim them to your specifications for an additional fee.
My blade says 4ZR 111815/B. Will the one you sell me fit?
Yes and no, it will need to be trimmed to your specifications. Please read step 1 of “Fan Identification guide” above.
My blade says 4ZR 111815/A. You sold me 111815/B, is it the wrong part?!
No. The 111815/B is just a mold ID number and has no bearing, 4ZR is the only part that matters.
If my blade says P4ZR, can I buy a 4ZR?
Yes and No. 4ZRs are made by a different manufacturer. They are interchangeable up to a certain point. You should only mix brands if you can put blades across from each other to maintain balance. As an example: on a 7 blade hub you can’t put blades across from each other, but buy 3 for a 9 blade and it balances out.
The same logic is true if you have a 4ZR blade and you are looking at purchasing the P4ZRs.
How long does it take to fix my fan?
We can often ship the same day if we can match your parts or design a replacement using the fan design software.
Do I have to worry about balance?
It depends. For high speed applications the fan should be balanced, we offer this service. You could buy a complete fan, or send in the hub for trim and balance. If you ask we can weigh the blades to get the best matched set, then we trim just the blades and ship for a quick repair.
Please message us, if you need additional help.
